At 5 a.m., your member shouldn't need a staff member, a working front desk computer, or a phone call to get through the door. They should present a credential, the system should check the account, and the door should make the right decision.
That sounds simple until the internet drops, a cancelled member keeps using an old card, two people follow one valid entry, or a reader takes long enough to create a queue. Smart card reader access control can solve real problems, but only when you judge the complete operating system, not the reader on the wall.
Why Your Gym's Front Door Is a Business Decision
At 5 a.m., your front door is acting as your opener, your desk staff, and part of your collections process. If it makes the wrong call, you feel it immediately in staffing, security, revenue, and member experience.
That is why the door decision is a business decision, not a hardware purchase. A slow entry flow creates a queue. A shared credential weakens control. A cancelled member who still gets in turns an access mistake into lost revenue. A member locked out before work does not care which vendor sold you the reader.
The choice is not just cards versus no cards. You can run smart cards, QR codes, PIN pads, or Face ID. Each one fails in a different way, and that matters more than the feature list. Judge every option by what happens when the network drops, a member forgets the credential, or someone tries to pass access to a friend.
Credential | Strongest advantage | Main weakness | Best operational use |
|---|---|---|---|
Smart card | Fast, familiar, low privacy impact | Can be lost or shared | Unattended gyms and controlled entry |
QR code | Members can arrive empty-handed with a phone | Screenshots and account sharing create risk | Flexible secondary access |
PIN | Cheap and easy to issue | Codes are easy to share | Backup or low-risk doors |
Face ID | Strong resistance to credential sharing | Privacy, enrollment, and accessibility concerns | Controlled environments with clear consent |
Unattended access can meaningfully reduce front desk staffing when the door, billing, and member records work together. Vendors such as Fitness GM describe savings of up to 40% in that setup, but only if deactivations, payment status, and entry permissions stay in sync. If staff still have to fix failed payments, manually shut off old credentials, or answer lockout calls, the labor saving shrinks fast.
A card-reader-free access approach can work if you want members to use phones or biometrics. Removing the physical reader does not remove the need for a reliable fallback, because a dead phone, a lost device, or a failed camera still leaves you with a door problem.
Operator's rule: Choose the credential your members will use reliably at 5 a.m., then design the backup for the moment that credential fails.
How Smart Card Reader Access Control Actually Works
At 5 a.m., nobody cares how polished the reader looks. The door either makes the right decision fast, or you get tailgating, lockouts, and staff messages before sunrise.
A smart card setup works as a chain of four parts. If one part is weak, the whole system is weak.
The four-part entry chain
The credential is the card itself. A contactless smart card contains a chip and antenna, and the member presents it near the reader instead of inserting it. ISO/IEC 14443 runs at 13.56 MHz and typically supports a reading distance of up to about 10 centimeters, or four inches, according to the Contactless Technology Report. That short range helps at a busy entrance because members usually have to present the card on purpose, rather than triggering stray reads while walking past.
The reader talks to the card and passes the result onward. Entry speed is not just a reader spec. It also depends on the card type, the authentication exchange, the controller, and how quickly the software returns a decision. Bad rollouts show up first here. A reader can look fast in a demo and still feel slow on a live gym door if the rest of the chain lags.
The controller makes the door decision in the moment. Set this up to keep working during a network drop. If the controller cannot validate the rules it needs when the connection fails, your unattended door becomes a support problem. It should also log entries so the system can sync activity later.
The management platform ties the credential to the live member record. It checks whether the membership is active, whether payments are current, whether that member can use that site, and whether the attempted entry fits the allowed schedule. NIST's PIV authentication guidance separates identity authentication from access authorization, and that distinction matters in practice because gyms often buy a reader without thinking through who updates the access rules, when, and where.
Why the billing connection matters
Shared cards, cancelled memberships, and early-morning failures get handled properly or badly. If access control and billing sit in separate systems, a cancelled member can keep getting in until somebody notices and turns access off by hand.
Connect the systems properly and the policy applies automatically. A failed payment, a cancellation, or a site restriction updates the door rules without staff chasing accounts one by one. If you want a plain-language overview of how the hardware and software fit together, choose Wisenet Security Ltd.

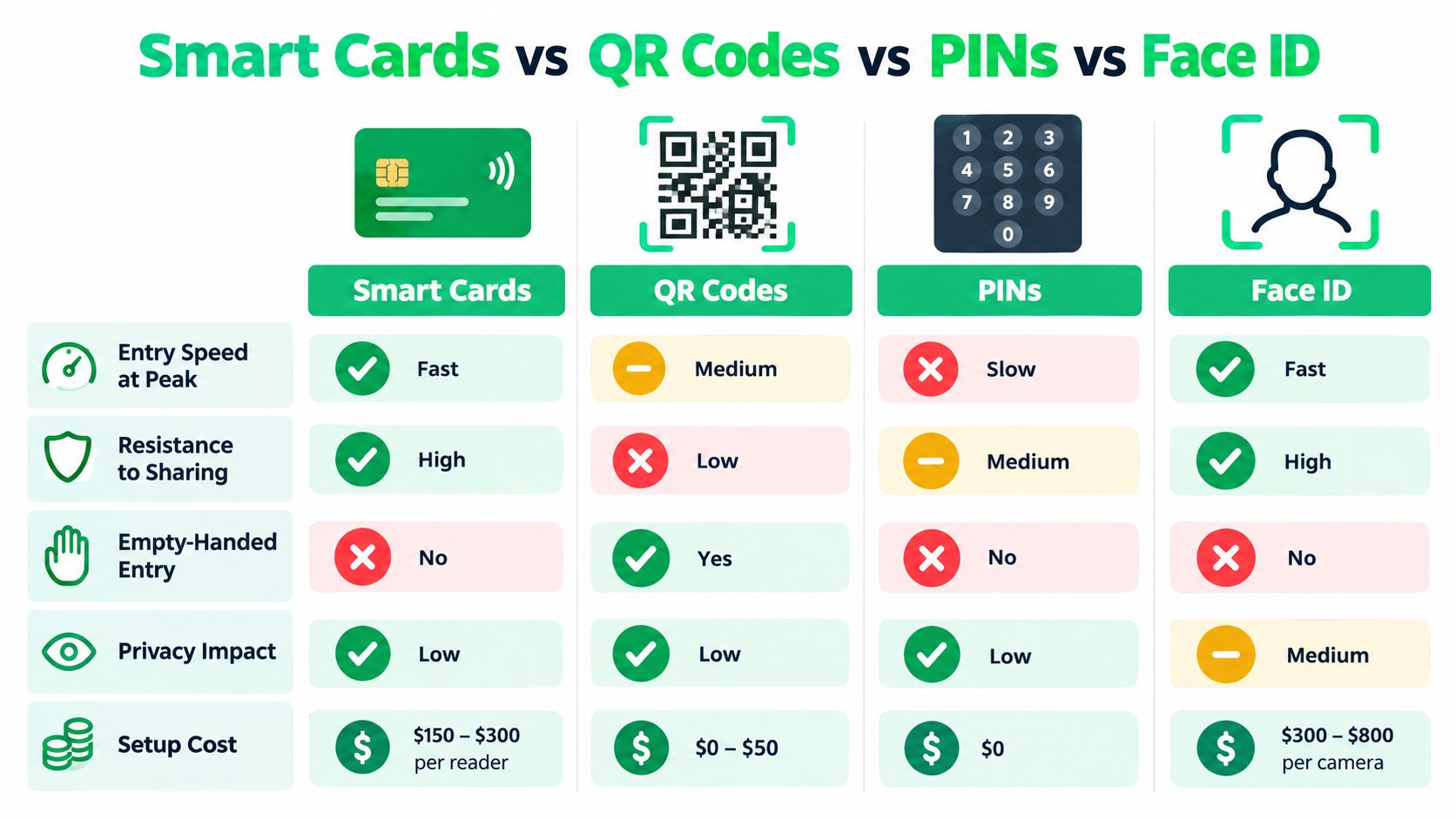

Smart Cards vs QR Codes vs PINs vs Face ID
The best credential is the one that survives a real Monday evening, not the one with the longest feature sheet. Members forget cards, phones run out of battery, PINs get shared, and cameras struggle when lighting or enrollment isn't right.
Credential | Entry Speed | Sharing Risk | Failure Mode | Best Fit |
|---|---|---|---|---|
Smart card | Fast when correctly configured | Low with cryptographic authentication, higher with serial-number readers | Lost card, damaged card, reader incompatibility | Unattended facilities needing predictable entry |
QR code | Medium | High if screenshots or accounts are shared | Dead phone, unreadable screen, copied code | Secondary access and flexible member entry |
PIN | Slow at peak | Medium to high | Forgotten or shared code | Backup access and simple doors |
Face ID | Fast when enrollment and lighting work | Low | Privacy objection, recognition failure, camera outage | Facilities prioritizing hands-free entry |
Smart cards are usually the strongest physical compromise for an unattended gym. Members understand the tap, the credential doesn't depend on battery life, and a properly designed system can authenticate the card rather than trust an exposed number. The catch is that not every card reader deserves the word secure.
QR codes solve the empty-handed problem better than cards. A member can arrive with a phone and present a code, but that convenience creates a sharing problem. A screenshot can travel between people unless the platform uses account binding, short-lived tokens, or another check.
PINs are cheap and resilient, but they turn the member into the security boundary. Once a code gets passed around, the system can't tell which person typed it. That makes PINs sensible as a controlled fallback, not as the only credential for a high-value unattended facility.
Face ID reduces the sharing problem because the credential is attached to the person. It also introduces privacy, accessibility, enrollment, lighting, and camera-failure concerns. Don't make biometric access the only route unless you've documented what happens when recognition fails.
For background on how credential choices affect door security for workplaces, compare the access method with the environment rather than treating one technology as universally superior. Your gym has different failure conditions from an office, especially when members arrive outside staffed hours.
The key differentiator isn't the shape of the credential. It's whether the system can authenticate it, authorize it, revoke it, log it, and recover when it fails.
If your priority is simple phone-based entry, review QR code access control for gyms alongside cards. The right decision may be a primary card with QR or PIN fallback, not a forced choice between one credential and another.
The Security Gap Most Vendors Won't Explain
It is 5 a.m., the place is unstaffed, and the door opens for someone who should not be there. That failure usually starts with a reader that accepts a card number, not a reader that proves the credential is genuine. Vendors blur that line because both systems get sold under the same RFID or smart-card label.
A basic setup reads a UID, sends that identifier to the controller, and opens the door if the number matches an approved list. That is simple. It is also easy to misunderstand. If someone clones the identifier or borrows a valid card, the door sees a matching number and nothing more.
A stronger setup uses cryptographic authentication. The reader or controller sends a challenge, and the card proves it holds a protected key or certificate without exposing the secret itself. That is the key divide. The broader NIST history of identity and access management explains why identity systems moved toward cryptographic methods and interoperable standards instead of trusting exposed identifiers.
Ask vendors these questions
Skip any sales answer that stops at “encrypted.” Ask:
- What does the reader validate? Does it authenticate a secure application on the card, or only read a UID?
- Can you revoke credentials centrally? Find out how quickly a cancelled, lost, or stolen card stops working.
- What gets logged? Every successful and failed attempt should connect to the member record.
- Where are decisions made during an outage? The controller needs defined local behavior, not a vague promise that the cloud will recover.
- Can you export the events? If a member disputes an entry, you need an audit trail you can review.
In an unattended gym, cloned credentials and shared credentials can create access without a staff member seeing it happen. A cryptographic card cuts the risk that a copied identifier alone will open the door. It does not solve tailgating, and it does not stop a member from handing a valid card to someone else. That is why the fallback chain matters. Authentication at the card, authorization in the system, revocation tied to billing status, and logs you can review after an incident.
Smart cards can support authentication, encrypted communication, secure storage, and tamper resistance. Those capabilities matter only if the installed reader and controller use them. Product category names mean very little.
Specify credential authentication, not identifier checking, in your procurement requirements, and tie the result to authorization rules and event logging.

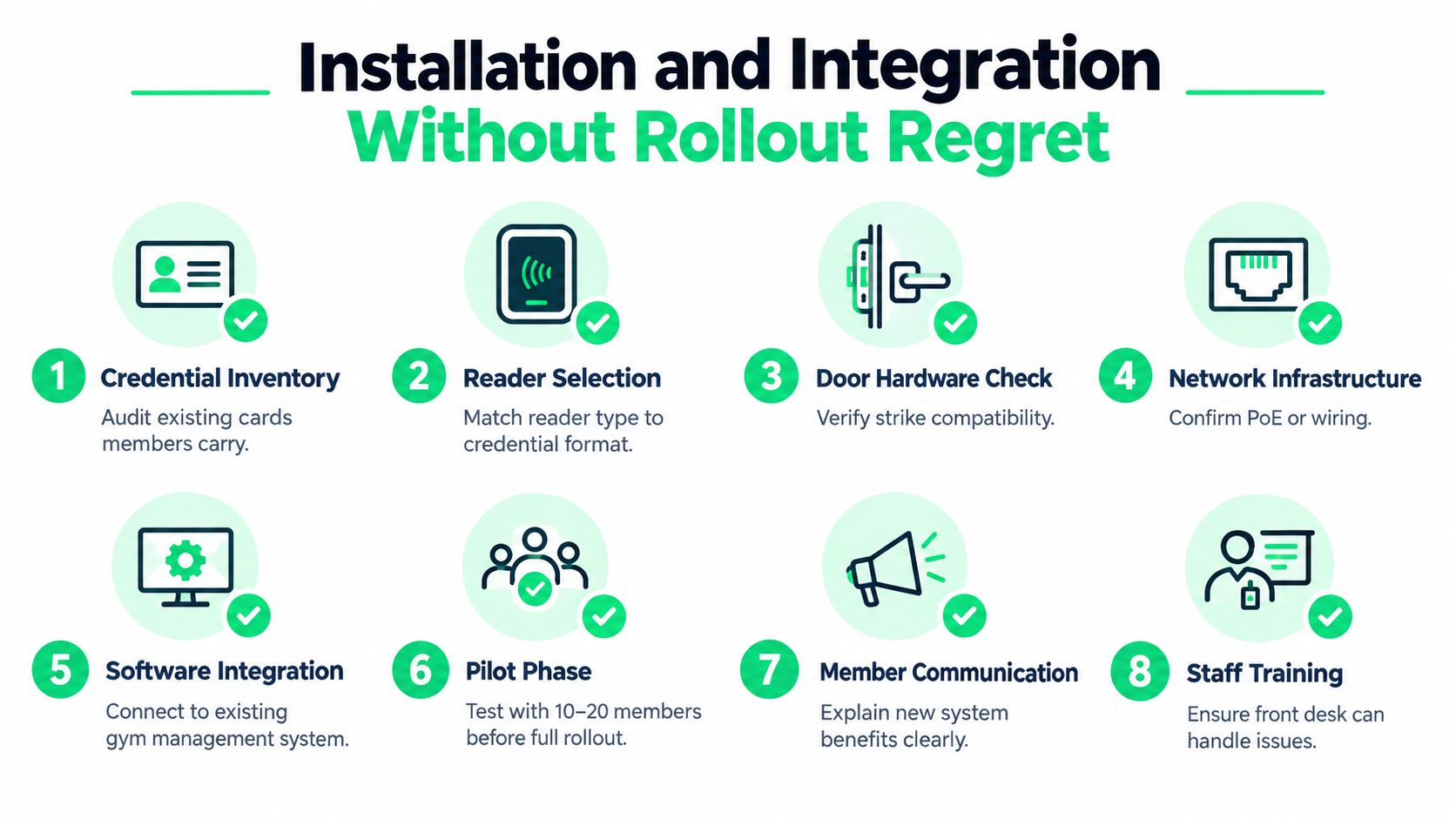

Installation and Integration Without Rollout Regret
Most access-control failures begin before the reader arrives. The owner buys hardware based on a product page, then discovers that the existing cards use a different frequency, the door strike doesn't match, or the management platform can't receive billing status.
Start with the cards you already have
Inventory every credential members and staff currently carry. Check whether the system uses ISO/IEC 14443 Type A or Type B, MIFARE, FeliCa, NFC, 125 kHz proximity cards, or another format. The phrase “smart card” doesn't guarantee compatibility.
One documented HID smart-tools reader specification supports ISO 14443 Type A and Type B, MIFARE, FeliCa, and NFC devices compliant with ISO/IEC 18092. Other readers support 13.56 MHz smart cards, 125 kHz proximity cards, or both. Test the actual cards at the actual door before you sign a purchase order.
Then inspect the physical installation. Confirm the electric strike or maglock works with the controller, check the wiring and power arrangement, and decide what the door should do during a power or network failure. A technically compatible reader is still a bad purchase if it can't operate the existing hardware safely.
Test the complete transaction
Don't measure only the tap. Measure the time from card presentation to door release, including authentication, controller processing, software checks, and any network round trip.
A published proof of concept measured end-to-end authentication latency from 4.665 to 4.878 seconds, with an average of 4.757 seconds, and attributed much of the delay to reading card contents and authenticating across card sectors, with network delay also contributing. The smart-card access-control study isn't a universal benchmark, but it proves why your own test must cover the entire path.
Test under peak arrival conditions, poor connectivity, cold starts, and simultaneous readers. Use a dedicated card application, keep the gate transaction focused on necessary credential fields, cache suitable authorization data locally, and synchronize revocations promptly.
Roll out in a controlled sequence
- Audit credentials. Record every card type and existing reader.
- Confirm door hardware. Test the lock, exit device, fire requirements, and power behavior.
- Map member rules. Define active status, payment status, locations, and time windows.
- Connect the platform. Ensure access receives current membership and billing decisions.
- Pilot the system. Use a small group of members before changing every door.
- Test failure modes. Pull the internet, cancel an account, lose a card, and create a disputed entry.
- Train staff. Give them a clear recovery process, not just a login.
- Communicate changes. Tell members what to bring and what to do when the primary credential fails.
The broader access control best-practices guide for schools and nonprofits reinforces a point gym owners often miss. Hardware, permissions, user management, and operating procedures belong in one plan.
What Happens When Things Go Wrong
At 5 a.m., a network outage is not an IT ticket. It's a member standing outside your building.
A reliable controller should make local authorization decisions using a controlled cache of permitted credentials. It should continue to recognize active members during a connection failure, while applying a defined policy to expired or revoked credentials. The system must store events locally and synchronize them when connectivity returns.
Cancellation needs a different rule. If a member's account is cancelled or payment status changes, revocation should reach the door quickly. If your design allows a long offline grace period, you need to understand the revenue and security trade-off instead of discovering it after a dispute.
Build the fallback chain before launch
Use a clear order:
- Primary credential: Cryptographic smart card for predictable entry.
- Secondary credential: QR code or PIN for a member who forgot the card.
- Recovery process: A controlled identity check and staff override for exceptional cases.
- Last resort: A documented alarm, lock, or emergency procedure that doesn't depend on a single employee knowing what to do.
A forgotten card shouldn't strand a paying member, but a fallback shouldn't become an unmonitored hole. PINs need individual assignment and periodic review. QR access needs account controls that limit copying. Staff overrides need logs and a reason code.
Tailgating is a separate problem. A valid card proves that one credential was presented, not that only one person entered. The CEN-CENELEC smart-card and secure-element material highlights why logs, revocation speed, and recovery processes matter even when the credential itself is strong.
Stronger authentication can also increase friction or exclusion. A card-only system fails members who forget or lose cards. A phone-only system fails when the battery is dead. Biometric access raises privacy and accessibility questions. Your safest design is a fallback chain, not a single perfect credential.
Which Access System Fits Your Gym
At 5 a.m., your choice gets tested fast. The network drops, a cancelled member tries the door, or someone hands their card to a friend. Pick the system that fails cleanly, revokes fast, and gives staff a clear recovery path.
A 24/7 gym should put a cryptographically authenticated physical credential first, then use QR or PIN as controlled backup through the management platform. That setup gives you predictable entry, less dependence on phone batteries, and a stronger answer to card sharing than a reader that only checks a card number. If your connection is unstable, local decision-making matters just as much as the credential.
A boutique studio can lead with QR or Face ID if fast, hands-free entry fits the member experience. Keep a card or PIN option anyway. Recognition fails, phones die, and some members will not want biometric enrollment. Staff on site can solve exceptions, but staff should not be the access system.
A multi-location franchise needs centralized revocation before it needs flashy reader features. One member identity should control site permissions, time rules, and cancellation status everywhere. If a cancelled account stays active at one club because updates lag, you have already lost control of the door. Test cross-location revocation before launch, not after the first billing dispute.
A solo trainer with one door should keep it simple. PIN or QR can work in a small, supervised setup. Smart cards start making more sense when access hours widen or nobody is there to verify who just walked in.
Migrate without locking yourself in
Do not swap every card for mobile access just because it looks newer. Mobile credentials add battery, device-sharing, privacy, and account-recovery failure points. A physical card still earns its place because it works without an app session or a charged phone.
Start with the installed reader, controller, and protocol. If you are stuck with legacy Wiegand, ask how the new controller protects data in transit and whether existing cards can stay in service during a phased migration. Add QR, mobile, PIN, or biometric entry in stages. Keep at least one fallback that does not depend on the same phone, app, or network.
When you compare the best access control systems for gyms, judge them on revocation speed, billing integration, outage behavior, and support. The reader on the wall matters less than the chain behind it when something breaks.
